Monte Carlo C++ AMP

This blog is starting to look very inconsistent – my last blog post was talking about starting to write a game, and now I’ve gone onto a totally different topic. Due to time the game’s gone onto, if not the back burner, then a gentle simmer. I’ve got to balance doing cool stuff with keeping on top of various technologies that may be relevant as a contractor, and having a life!

This blog will describe using C++ AMP for calculating Pi; the calculation of Pi is a fairly good example of Monte Carlo calculations, as the algorithm’s simple, and we all know the result.

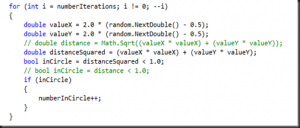

First off, this is what the algorithm looks like in C#:

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image001_thumb25255B125255D-300x128.png

It simply finds the number of circles representing x-y coordinate pairs, whose vector magnitude falls within the unit circle. This ratio is Pi / 4.

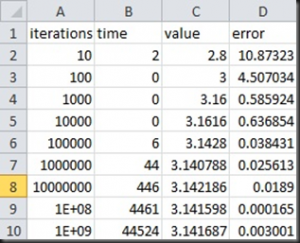

The random class is the Mersenne Twister code from here: http://takel.jp/mt/MersenneTwister.cs. The results are:

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image002_thumb25255B125255D-300x243.png

Replacing the Mersenne Twister class with System.Random resulted in code which was approximately 30% slower. I’m running this on a dual-core laptop, but have not parallelised it, as I didn’t fancy porting over a Parallel Random Number Generator (PRNG) myself.

Tomas Petricek has an example of using the GPU to calculate Pi using F# here, but his example generates the random numbers on the CPU and uploads them to the GPU to do the calculations and reduction.

C++ AMP Version

Microsoft have just released a C++ AMP Random Number generator library to codeplex http://amprng.codeplex.com/, but I’m using BharathM port of the parallel Mersenne Twister described here: http://blogs.msdn.com/b/nativeconcurrency/archive/2011/12/20/mersenne-twister-sample-using-c-amp.aspx

His example generates random numbers into a rank 2 array of size 4096 * 2, but I’ve modified g_n_per_RNG to be 256.

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image00425255B425255D-300x71.jpg





The first thing I do is to pair up those random numbers into x-y coordinates and to find the square of their magnitude:

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image00625255B425255D-300x66.jpg

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image00825255B425255D-300x98.jpg

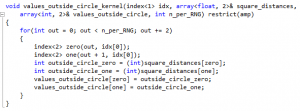

Then I determine whether the magnitude of these coordinates fall outside of the unit circle:

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image01025255B425255D-300x37.jpg





/blog/2012-05-21-monte-carlo-c-amp/images/clip_image01125255B425255D-300x111.png

The final step is to do a parallel reduce of the resulting array. This is using the just-released reduction method from the C++ AMP algorithms library: http://ampalgorithms.codeplex.com/

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image01325255B425255D-300x60.jpg

The reduce function behaves similar to STL’s std::accumulate in that you can pass in the binary operation to perform on each item. The function takes a rank 1 array, so I’m using view_as to change rank.

To perform the timings I run the algorithm twice, once to warm up (ensure all shaders etc are compiled – see http://social.msdn.microsoft.com/Forums/en-US/parallelcppnative/thread/1c6c9f04-1f9f-4f44-99f3-154d991ae5ba )

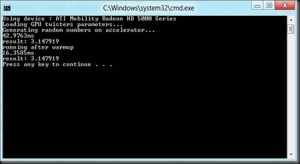

The results I obtained are:

/blog/2012-05-21-monte-carlo-c-amp/images/clip_image015_thumb25255B125255D-300x164.jpg

Calculating the result for half a million random numbers took approximately 16 milliseconds, whereas for the single threaded C# code a million iterations took 44 ms, so accounting for using both cores the performance seems pretty similar. This is quite disappointing, even though the GPU isn’t the most powerful (a mobile 5470), the CPU isn’t the most powerful either, so I was hoping for near an order of magnitude speed up. I wasn’t doing anything clever with tiling, and there may be other bits of the API I’m not using correctly. I’ll have to get hold of Kate Gregory’s book and try with different examples.
